PRODUCT INTRODUCTION
Excellent products and considerate service

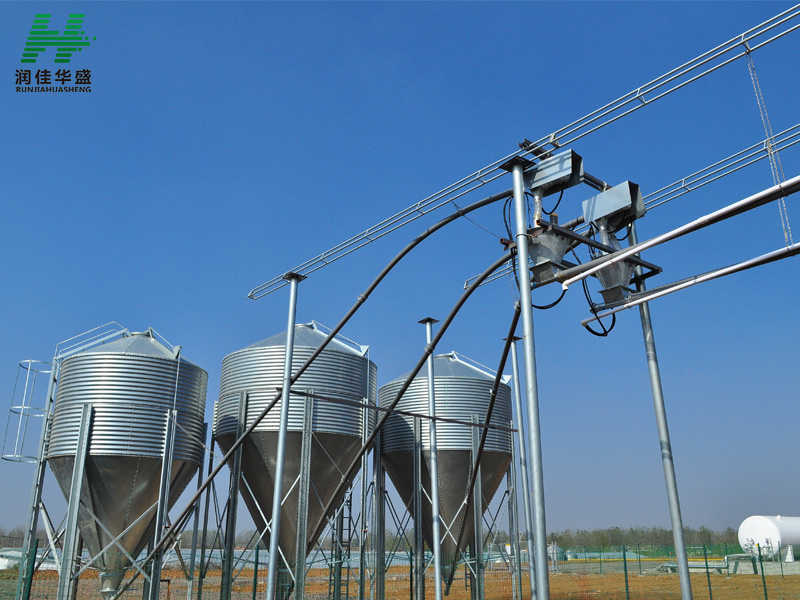

The silo’s centralized feeding system can avoid the bacteria in the farm. Cross infection, reduce the incidence of infectious diseases, and escort your wealth.
| Diameter | Layers | CBM(m³) | Capacity(TON) | Legs(PCS) | Height(M) | Weight(KG) |
| φ1830 | 1 | 4.8 | 3 | 4 | 4.3 | 310 |
| φ1830 | 2 | 7.1 | 4.5 | 4 | 5.2 | 368 |
| φ1830 | 3 | 9.4 | 6 | 4 | 6.1 | 426 |
| φ1830 | 4 | 11.8 | 7.5 | 4 | 7 | 484 |
| φ1830 | 5 | 14.1 | 9 | 4 | 7.9 | 563 |
| φ1830 | 6 | 16.5 | 10.5 | 4 | 8.8 | 642 |
| φ2140 | 1 | 6.76 | 4.4 | 4 | 4.8 | 395 |
| φ2140 | 2 | 9.96 | 6.4 | 4 | 5.7 | 460 |
| φ2140 | 3 | 13.16 | 8.5 | 4 | 6.6 | 543 |
| φ2140 | 4 | 16.36 | 10.5 | 4 | 7.4 | 607 |
| Φ2750 | 1 | 11.8 | 7.1 | 6 | 5 | 532 |
| Φ2750 | 2 | 17.1 | 10.5 | 6 | 5.9 | 614 |
| Φ2750 | 3 | 22.4 | 14 | 6 | 6.8 | 710 |
| Φ2750 | 4 | 27.5 | 17.4 | 6 | 7.7 | 791 |
| φ3050 | 1 | 15.1 | 9.8 | 6 | 5.3 | 619 |
| φ3050 | 2 | 21.6 | 14 | 6 | 6.2 | 723 |
| φ3050 | 3 | 28.1 | 18.2 | 6 | 7.1 | 828 |
| φ3050 | 4 | 34.7 | 22.5 | 6 | 8 | 932 |
| φ3660 | 1 | 25.1 | 15.5 | 8 | 6.7 | 925 |
| φ3660 | 2 | 34.5 | 21.5 | 8 | 6.6 | 1050 |
| φ3660 | 3 | 43.9 | 27.5 | 8 | 7.6 | 1176 |
| φ3660 | 4 | 53.3 | 33.5 | 8 | 8.5 | 1301 |
APPLICATION
Feed Silos are mainly used for animal husbandry,livestock breeding such as poultry farm,cow house, chicken house,etc.
PRODUCT DETAILS
Silo body
The raw material is SHOUGANG galvanized sheet, the strength and toughness have reached the international standard, and the galvanized sheet thickness is 275g/square, which conforms to the outdoor standards and has good corrosion resistance. Reasonable corrugation height effectively increases the shear yield strength of the sheet and increases the load carrying capacity
lower vertebral body
The angle of the lower vertebral body is 67° , which is currently the largest angle of the domestic material tower, small production error and high precision. Production equipment is currently leading the domestic industry, with high degree of automation and quick assembly.
Air Duct
The Silo Roof Sheet Has An Air Duct, Which Can Balance The Air Pressure Between Silo Side and Outside, Discharge Various Gases And Heat, Ensure Feeding Smoothly and Keep the Silo Inside Clean.
Ladder&Security Cage
The mounting ladder is molded from a whole piece of hot-dip galvanized steel plate with anti-skid design, which is firm and
non-slip, good stability and convenient installation.2. At the same time, it is equipped with a security cage, which is safe and
reliable, and is convenient for observing the feed level and maintaining the silo.
Observation Window
1. Transparent observation windows are respectively provided on the silo ring and the silo hopper.
2.The windows are made of plastic injection molding, with strong pressure resistance
and good light transmittance, making it easy to check the storage status.
Feed Inlet & Inlet Cover
1.Enlarged the top feed inlet for easy full of feed.
2. The movable silo cover is made of 275g/㎡ hot-dip galvanized sheet after one-time stretching.
3. The specially designed automatic elastic torsion spring control structure and the limit plate enable workers to open and close the cover freely on the ground, which is safe and convenient.
4. The cover fittings are all made of 304 stainless steel, high strength, no fracture, no rust.
OTHER PARTS
Single Silo Boot
Double Silo Boot
Boot(Galvanized）
Transparent Hopper
Transparent Hopper
Hopper (Galvanized)
